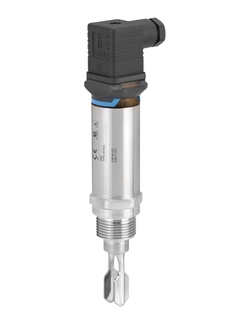

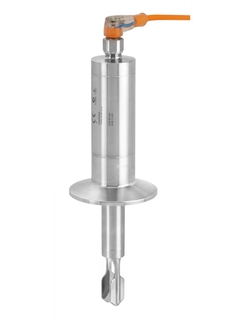

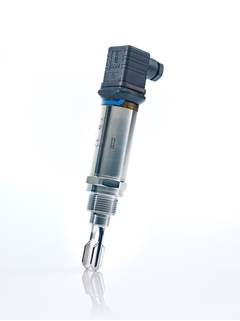

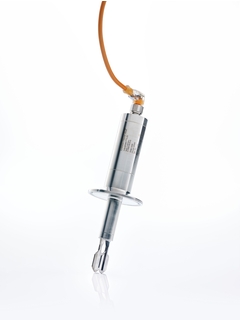

Liquiphant FTL33 - Vibronic point level detection

Vibronic
Point level detection
Liquiphant FTL33

Point level switch for liquids in compact hygienic design for the food industry

FTL33
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Liquiphant FTL33
  • F
  • L
  • E
  • X
©Endress+Hauser
Liquiphant FTL33
  • F
  • L
  • E
  • X
©Endress+Hauser
Liquiphant FTL33
  • F
  • L
  • E
  • X
©Endress+Hauser
Liquiphant FTL33
  • F
  • L
  • E
  • X
©Endress+Hauser
IO-Link digital communication technology

Specs at a glance

  • Process temperature

    -40 °C ... 150 °C
    (-40 °F ... 302 °F)

  • Process pressure / max. overpressure limit

    Vacuum ... 40 bar
    (Vacuum ... 580 psi)

  • Min. density of medium

    >0,7g/cm³
    (>0,5g/cm³ optional)

Field of application

Liquiphant FTL33 is a point level switch for liquids. The FTL33 is especially designed for food & beverage applications where hygienic requirements are requested. The Liquiphant is used for overfill protection or pump dry-run protection. The IO-Link capability allows easy parameter setting.
Compact:
- Smallest vibronic sensor in the market
Safe:
- Continuous self-monitoring
- Reliable switching independent of media properties
Easy:
- No calibration
- Plug & play
-IO-Link connectivity

Point level switch in compact hygienic design with stainless steel housing for the food industry.

  • Process connections: Threads, hygienic process connections, M24 process adapter

  • Temperature: -40 to +150°C (-40 to +302°F)

  • Pressure: -1 to +40bar (-14.5 to +580psi)

  • Surface roughness: 0.76µm or 1.5µm

  • Overfill protection and leakage detection WHG, hygienic certificates, final inspection report

Benefits

  • Designed for hygienic applications especially in the food industry - hygienic process connections and approvals available. IO-Link reduces costs and complexity due to easy configuration of the devices via engineering tools

  • CIP and SIP cleanability ensured - up to protection class IP69k

  • Designed according to highest requirements to quality and environmental sustainability, the self-monitoring Liquiphant offers safe switching also in case of power supply loss

  • Independent of changing media properties an accurate switching point is offered

  • A real plug & play sensor is offered without any need for adjustment even with changing media. Measurement is unaffected by conductivity, build-up, turbulence, flows or air bubbles

  • No calibration is required, no specific know-how or tools (e.g. software) necessary

  • Robust design made of stainless steel (316L) assures highest durability - no mechanically moved parts, free of maintenance

Videos

  • Liquiphant, Liquipoint, Cerabar, Ceraphant - A strong team for standard level and pressure applications

  • Vibronic measuring principle

  • Liquiphant with permanent function check is the safe choice for point level detection in liquids

  • IO-Link digital communication technology
    IO-Link communication

    IO-Link communication helps to digitalize your plant
