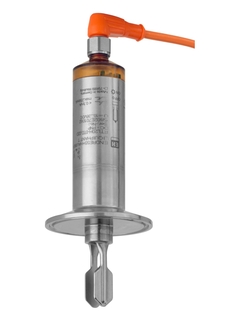

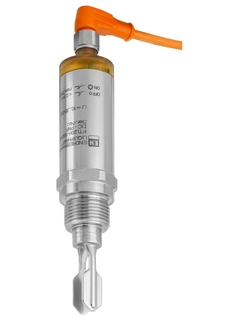

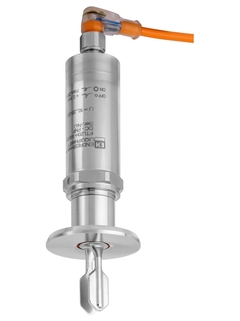

Name: Liquiphant T FTL20H
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Successor

F

L

E

X
Liquiphant FTL33

Point level switch for liquids in compact hygienic design for the food industry
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

from CHF ??.-

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Characteristic / Application

most compact
hygiene housing and process connections
CIP / SIP
Switch point 38mm
EHEDG approvals
Supply / Communication

19 ... 253V AC
10 ... 35V DC-PNP
ASI-Bus
Ambient temperature

-40 °C ... 70 °C
(-40 °F ... 158 °F)
-25 °C ... 70 °C - ASi
(-13 °F ... 158 °F - ASi)
Process temperature

-40 °C ... 150 °C
(-40 °F ... 302 °F)
Process pressure / max. overpressure limit

Vacuum ... 40 bar
(Vacuum ... 580 psi)
Min. density of medium

0,7g/cm3
(0,5g/cm3 optional)
Main wetted parts

316L
Process connection

G1/2A, G3/4A, G1A, NPT1/2", NPT3/4", R1/2", R3/4"
Process connection hygienic

Tri-Clamp ISO2852
Dairy coupling
Flush mount solutions
Sensor length

64mm (2.52")
Communication

AC, DC-PNP, ASi
Certificates / Approvals

WHG/ Overfill prevention
EHEDG
GL Marine
Successor

Product phase out planned,
Successor FTL33

Filter

21 documents

Technical Information (TI)

TI Weld-in adapter, process adapter and flanges

Technical Information (TI)

English version - 03/2024

New version available in English

Level, pressure and temperature measurement

Select other languages, versions and see details Hide selection and details

	EN
25/03/2024
15/09/2023
28/10/2021
30/07/2021
19/06/2020

Language:	English
Version:	25/03/2024
File size:	1.1 MB
File name:	TI00426FEN_2524.pdf

Share
- Copy Link
- Send Mail
Download

Technical Information (TI)

Technical Information Vibration Limit Switch <br>Liquiphant T FTL 20 H

Technical Information (TI)

English version - 06/2009

New version available in English

Level limit switch for liquids in the foodstuff industry, compact
design, housing made of corrosion-resistant stainless steel

Select other languages, versions and see details Hide selection and details

	EN
18/06/2009
23/01/2008
27/07/2004

Language:	English
Version:	18/06/2009
File size:	783.8 KB
File name:	TI379FEN_0509.pdf

Share
- Copy Link
- Send Mail
Download

Short Instruction (KA)

Füllstandgrenzschalter Liquiphant T FTL20H

Short Instruction (KA)

English version - 07/2004

New version available in English

Füllstandgrenzschalter für Flüssigkeiten
im Lebensmittelbereich, kompakte Bauform, Gehäuse aus
korrosionsbeständigem Edelstahl

Select other languages, versions and see details Hide selection and details

	EN
29/07/2004

Language:	English
Version:	29/07/2004
File size:	569.8 KB
File name:	KA214FA6.PDF

Share
- Copy Link
- Send Mail
Download

Short Instruction (KA)

Liquiphant FTL33, FTL20H, FTL5xH Operating Instructions

Short Instruction (KA)

English version - 11/2014

New version available in English

Weld-in adapter

Select other languages, versions and see details Hide selection and details

	EN
24/11/2014
07/02/2006

Language:	English
Version:	24/11/2014
File size:	144.8 KB
File name:	KA00269FA6_1314.pdf

Share
- Copy Link
- Send Mail
Download

Short Instruction (KA)

Liquiphant T FTL20 Operating Instruction

Short Instruction (KA)

English version - 09/2004

New version available in English

Point level switch for all liquids

Select other languages, versions and see details Hide selection and details

	EN
14/09/2004
01/05/2003

Language:	English
Version:	14/09/2004
File size:	542.4 KB
File name:	KA213FA6.PDF

Share
- Copy Link
- Send Mail
Download

Short Instruction (KA)

Liquiphant T Operating Instructions

Short Instruction (KA)

English version - 06/2005

New version available in English

Weld-in adapter without flange with G3/4A

Select other languages, versions and see details Hide selection and details

	EN
27/06/2005

Language:	English
Version:	27/06/2005
File size:	314.6 KB
File name:	KA257fa6.pdf

Share
- Copy Link
- Send Mail
Download

ZE (Certificate)

Liquiphant FTL20/OTL20 und FTL20H/OTL20H

ZE (Certificate)

German version - 08/2011

New version available in English

WHG
Allgemeine bauaufsichtliche Zulassung
Z-65.11-311 (DIBt)

Select other languages, versions and see details Hide selection and details

	EN
01/08/2011
01/07/2006
01/03/2004

Language:	German
Version:	01/08/2011
File size:	3.3 MB
File name:	ZE00247FDE_1311.pdf

Share
- Copy Link
- Send Mail
Download

ZE (Certificate)

Liquiphant FTL20, FTL20H

ZE (Certificate)

English version - 03/2004

New version available in English

CSA
Certificate of Compliance No. 1238461

Show details Hide details

Language:	English
Version:	01/03/2004
File size:	3.2 MB
File name:	ZE250FEN.PDF

Share
- Copy Link
- Send Mail
Download

ZE (Certificate)

Liquiphant FTL20, FTL20H, OTL20, OTL20H

ZE (Certificate)

English version - 09/2011

New version available in English

ZU-Nr.: 37102

Select other languages, versions and see details Hide selection and details

	EN
01/09/2011
01/12/2003

Language:	English
Version:	01/09/2011
File size:	376.4 KB
File name:	ZE00249FA2_1311.pdf

Share
- Copy Link
- Send Mail
Download

ZE (Certificate)

Liquiphant FTL20/OTL20 und FTL20H/OTL20H (Leckage)

ZE (Certificate)

German version - 08/2011

New version available in English

WHG
Allgemeine bauaufsichtliche Zulassung
Z-65.40-312 (DIBt)

Select other languages, versions and see details Hide selection and details

	EN
01/08/2011
01/08/2007
01/07/2006
01/03/2004

Language:	German
Version:	01/08/2011
File size:	3.4 MB
File name:	ZE00248FDE_1311.pdf

Share
- Copy Link
- Send Mail
Download

Loading more results

Filter

60 spare parts & accessories

Unit is not repairable.

further parts
Phase out spares

further parts
12/2017

further parts
O-ring 14.9x2.7 VMQ, FDA, 5 pcs.

further parts

Order code

52021717
Profile gasket 29x36x3.7, FDA, 5 pcs.

further parts

Order code

52014424
O-ring 28.17x3.53 VMQ, FDA, 5 pcs.

further parts

Order code

52014472
Socket wrench 32AF

further parts

Order code

52010156
Pressure ring f.weld-in adapt.G3/4" 316L

further parts

Order code

52027421
Weld-in adapter G3/4, d=29, 316L, 3.1

further parts

Order code

52028295
Weld-in adapt. G3/4,d=29,316L,sleeve,3.1

further parts

Order code

52028294
Weld-in adapter G3/4 d=50, 316L, 3.1

further parts

Order code

52018765
Weld-in adapt. G3/4,d=50,316L,sleeve,3.1

further parts

Order code

52028293
Weld-in adapter G1, d=53, 316L, 3.1

further parts

Order code

71093129
Weld-in adapter G1, d=60, 316L

further parts

Order code

52001051
Weld-in adapter G1, adjustable, 316L

further parts

Order code

52001221
Weld-in adapter G1, adjustable,316L, 3.1

further parts

Order code

52011898
Weld-in adapter RD52, 316L

further parts

Order code

52001047
Weld-in adapter RD52, 316L, 3.1

further parts

Order code

52006909
Union nut DIN11851, F25, SS

further parts

Order code

52021715
