Name: iTEMP HART TMT122
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

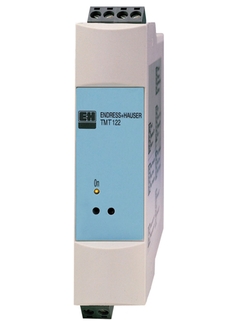

Product picture temperature transmitter TMT122

Predecessor

TMD842

TMD840

Successor

F

L

E

X
iTEMP HART TMT72

HART® temperature transmitter as head, field or DIN rail device with one universal sensor input suitable for use in hazardous areas
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

from CHF ??.-

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Input

1 x RTD, TC, Ohm, mV
Output

1 x analog 4...20 mA
Auxiliary power supply

12...35 V DC (standard-version)
12...30 V DC (Ex-version)
Communication

HART-protocol
Installation

DIN rail
Accuracy

(Pt100, -50...200 °C) <= 0,2 K
(Pt100, -58...392 °F) <= 0,4 °F
Galvanic isolation

yes
Certification

UL rec. Comp
marine approval
GOST Metrology
FM IS,NI,Class I,Div.1+2,Group ABCD
CSA IS,NI,Class I,Div.1+2,Group ABCD
ATEX II2(1)G Ex ia[ia Ga] IIC T6 Gb
ATEX II3G Ex nA IIC T6
FM+CSA IS,NI,Class I,Div.1+2,Group ABCD
CSA General Purpose
IECEx Ex ia IIC T6/T5/T4
NEPSI Ex nA IIC T4-T6

Filter

Search downloads by serial number

Configure to download the CAD drawings of this product

Configure

Most downloaded

Operating Instruction (BA)

BA155R Operating Instructions for TMT122 Version 07.03

English version - 09/2007

New version available in English

Operating Instructions for iTEMP® HART® TMT122 DIN rail Temperature Transmitter

Select other languages, versions and see details Hide selection and details

	EN
06/09/2007
01/07/2005
24/06/2004

Language:	English
Version:	06/09/2007
File size:	1.7 MB
File name:	BA155rae.pdf

41 documents

Technical Information (TI)

iTEMP HART® TMT122 DIN rail

Technical Information (TI)

English version - 01/2019

New version available in English

Universal temperature transmitter for resistance thermometers (RTD),
thermocouples, resistance and voltage transmitters, incorporating HART ®
protocol

Select other languages, versions and see details Hide selection and details

	EN
30/01/2019
01/10/2010
12/01/2005
15/09/2003

Language:	English
Version:	30/01/2019
File size:	444.2 KB
File name:	TI00090REN_1419.pdf

Share
- Copy Link
- Send Mail
Download

Operating Instruction (BA)

ReadWin® Quick Setup

Operating Instruction (BA)

English version - 02/2005

New version available in English

Operating Manual
ReadWin® Quick Setup Temperature
PC Software

Select other languages, versions and see details Hide selection and details

	EN
02/02/2005

Language:	English
Version:	02/02/2005
File size:	883.5 KB
File name:	Ba213ra2.pdf

Share
- Copy Link
- Send Mail
Download

Operating Instruction (BA)

Operating manual iTEMP HART Communication

Operating Instruction (BA)

English version - 03/2011

New version available in English

iTEMP HART Communication TMT 182/TMT 122

Select other languages, versions and see details Hide selection and details

	EN
10/03/2011
21/11/2002

Language:	English
Version:	10/03/2011
File size:	1.8 MB
File name:	ba139ra3_1102.pdf

Share
- Copy Link
- Send Mail
Download

Operating Instruction (BA)

Operating Manuals ReadWin 2000 (GB)

Operating Instruction (BA)

English version - 01/2010

New version available in English

Operating Manuals ReadWin 2000

Select other languages, versions and see details Hide selection and details

	EN
01/01/2010
31/10/2008
20/06/2007
25/07/2001

Language:	English
Version:	01/01/2010
File size:	6.3 MB
File name:	BA137Ren_0110.pdf

Share
- Copy Link
- Send Mail
Download

Operating Instruction (BA)

BA155R Operating Instructions for TMT122 Version 07.03

Operating Instruction (BA)

English version - 09/2007

New version available in English

Operating Instructions for iTEMP® HART® TMT122 DIN rail Temperature
Transmitter

Select other languages, versions and see details Hide selection and details

	EN
06/09/2007
01/07/2005
24/06/2004

Language:	English
Version:	06/09/2007
File size:	1.7 MB
File name:	BA155rae.pdf

Share
- Copy Link
- Send Mail
Download

Short Instruction (KA)

Brief operating instructions iTEMP® HART® DIN rail TMT122

Short Instruction (KA)

English version - 12/2012

New version available in English

DIN rail temperature transmitter for RTD, TC, resistance and voltage
"sensors; Communication via HART®-protocol"

Select other languages, versions and see details Hide selection and details

	EN
18/12/2012
12/01/2005
17/06/2004

Language:	English
Version:	18/12/2012
File size:	1.2 MB
File name:	KA128ra3_0111.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

Safety instructions ATEX II3G, iTEMP TMT122

Ex Safety Instruction (XA)

English version - 11/2009

New version available in English

Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Select other languages, versions and see details Hide selection and details

	EN
01/11/2009
01/02/2002

Language:	English
Version:	01/11/2009
File size:	403.1 KB
File name:	XA019ra3_1109.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

iTEMP TMT122

Ex Safety Instruction (XA)

English version - 01/2015

New version available in English

CSA:
Control Drawing IS, NI
141401112A

Show details Hide details

Language:	English
Version:	08/01/2015
File size:	117.1 KB
File name:	141401112A.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

iTEMP TMT122

Ex Safety Instruction (XA)

English version - 01/2015

New version available in English

FM:
Control Drawing IS, NI
141401111

Show details Hide details

Language:	English
Version:	08/01/2015
File size:	120.1 KB
File name:	141401111.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

XA iTEMP TMT121/127/128, TMT112, TMT122

Ex Safety Instruction (XA)

English version - 03/2023

New version available in English

ATEX:
Ex nA IIC Gc

Select other languages, versions and see details Hide selection and details

	EN
13/03/2023
15/06/2016
05/05/2015
01/11/2009
01/02/2002

Language:	English
Version:	13/03/2023
File size:	396.9 KB
File name:	XA00018REN_1523-00.pdf

Share
- Copy Link
- Send Mail
Download

Loading more results

Filter

60 spare parts & accessories

Terminal plug-in 4pole SMSTB2,5 printed

further parts

Order code

51006248
Terminal plug-in 4pole SMSTB2,5 printed

further parts

Order code

51006249
Terminal plug-in 2pole RM5 printed -/+

further parts

Order code

51006250
Termin plug-in 2pole RM5 printed -/+

further parts

Order code

51006251
Set, 10x fixing lever housing

further parts

Order code

71402350
Commubox FXA195

further parts

Order code

FXA195-
Readwin 2000 Operation + Read. software

Order code

READWIN-
