Differential pressure
Deltabar FMD77

Differential pressure transmitter with one diaphragm seal for level measurement

FMD77

Compare

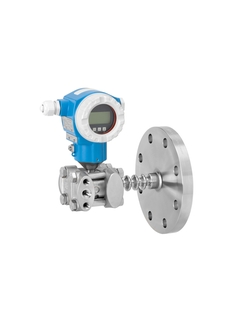

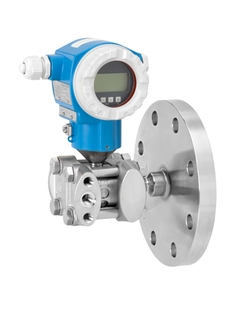

Deltabar FMD77 temperature isolator short, transmitter vertical

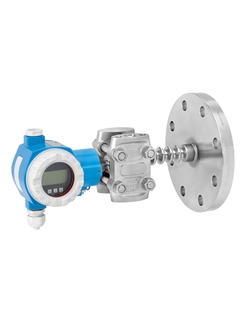

Deltabar FMD77 temperature isolator short, transmitter horizontal

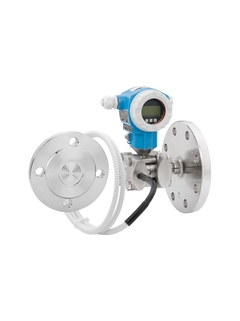

Deltabar FMD77 with two diaphragm seals and a capillary on the low pressure side

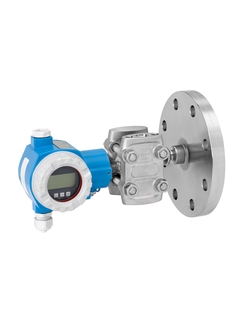

Deltabar FMD77 temperature isolator long, transmitter horizontal

Specs at a glance

Accuracy

0,075% + influence of diaphragm seal
Process temperature

-40°C...400°C
(-40°F...752°F)
Pressure measuring range

100mbar...16bar
(1.5psi...230 psi)
Process pressure / max. overpressure limit

160bar (2400 psi)
Main wetted parts

Alloy C276
316L
Monel
Tantalum
Max. measurement distance

160m (525ft) H2O
Material process membrane

316L, AlloyC,
Tantal,
Gold-Rhodium,
PTFE
Measuring cell

100 mbar...16 bar
(40 inH20...240 psi)

See all specifications

Field of application

The Deltabar FMD77 differential pressure transmitter with metal sensor uses a one-sided diaphragm seal or diaphragm seals on both sides with a capillary on the low pressure side. Typically used in the process industry for continuous level measurement in liquids. The integrated HistoROM data module makes the management of process and device parameters easy. Designed according to IEC 61508 for use in SIL3 safety applications.

For level, volume or mass measurement in liquids.

Process connections: Threads and flanges
Temperature: -70 to +400°C (-94 to +752°F)
Measuring ranges: +100mbar to +16bar (+1.5 to +240psi)
Accuracy: ±0.075%
International explosion protection certificates, overfill prevention WHG, hygienic approvals, marine approvals, SIL

Benefits

Large variety of different process connections and membrane materials
Highest safety due to gas-tight feedthrough with capabilities up to SIL2/3, certified to
IEC 61508
New TempC Membrane minimizes influences of ambient and process temperature fluctuations
Easy menu-guided commissioning via local display, 4 to 20 mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Cost savings with modular concept for easy replacement of sensor, display or electronics
Seamless and independent system integration (HART/PA/FF)
