Specs at a glance
-
Accuracy
Standard: 0.05%
Platinum: up to 0.025% -
Process temperature
-40°C...125°C
(-40°F...257°F) -
Pressure measuring range
400 mbar...700 bar
(5.8 psi...10.500 psi) -
Main wetted parts
Alloy C276
316L
Rhodium -
Material process membrane
316L, AlloyC,
Rhodium> Gold -
Measuring cell
400 mbar...700 bar
(5.8 psi...10.500 psi)
relative/ absolute

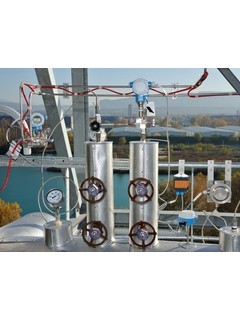

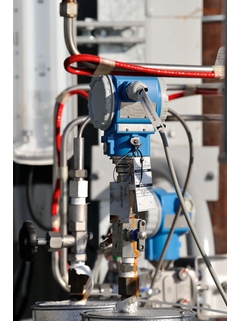

Field of application

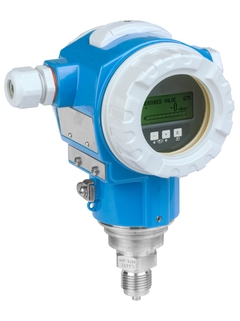

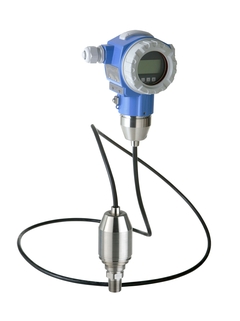

The Cerabar PMP71 digital pressure transmitter with metallic membrane is typically used in process applications for pressure, level, volume or mass measurement in liquids or gases. PMP71 is designed for high pressure applications up to 700bar. Quick Setup with freely adjustable measuring range without pressure specification. Designed according to IEC 61508 for use in SIL2/3 safety systems and available with MID Parts Certificate suitable for custody transfer applications.

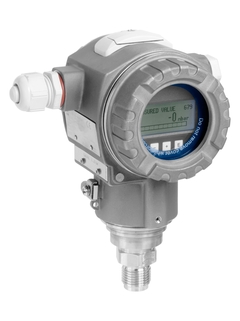

Two chamber aluminum or stainless steel (316L) housing.
Process connections: Threads and flange connections
Process temperature: -40 to +125°C (-40 to +257°F)
Measuring ranges: -1/0 up to 700bar (-15/0 up to +10,500psi)
Accuracy: ±0.05%, "Platinum" ±0.025%
International explosion protection certificates, overfill prevention WHG, hygienic approvals, marine approvals, SIL
Benefits
Best accuracy, reproducibility and long-term stability
Highest safety due to gas tight feedthrough with capabilities up to SIL2/3, certified to IEC 61508
Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Overload-resistant and function-monitored from the measuring cell to the electronics
Available with mounted manifolds: always fit, always tested for leaks
Seamless and independent system integration (HART/PA/FF)
Videos
Extended selection
-
High-end products
- Highly functional and convenient
Technical excellence
Simplicity
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
Loading alternative products
Predecessor
Success stories
Most downloaded
-
-
Technical Information (TI)
TI Cerabar S PMC71, PMP71, PMP75
English version - 04/2024
Process pressure measurement 1-5 V DC, HART, PA, FF
EN 01/04/202413/01/202229/09/202001/04/202016/04/2019Language:
English
Version:
01/04/2024
File size:
3.5 MB
File name:
TI00383PEN_3624-00.pdf
-
-
-
Special Documentation (SD)
Cerabar S PMP71/75, PMC71
English version - 10/2014
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit
EN 10/10/201401/11/2008Language:
English
Version:
10/10/2014
File size:
172.4 KB
File name:
SD00244PA2_1314.pdf
-
277 documents
-
-
Technical Information (TI)
TI Weld-in adapter, process adapter and flanges
Level, pressure and temperature measurement
EN 25/03/202415/09/202328/10/202130/07/202119/06/2020Language:
English
Version:
25/03/2024
File size:
1.1 MB
File name:
TI00426FEN_2524.pdf
-
-
-
Technical Information (TI)
TI Cerabar S PMC71, PMP71, PMP75
Process pressure measurement
1-5 V DC, HART, PA, FFEN 01/04/202413/01/202229/09/202001/04/202016/04/2019Language:
English
Version:
01/04/2024
File size:
3.5 MB
File name:
TI00383PEN_3624-00.pdf
-
-
-
Technical Information (TI)
Cerabar S PMP71 with MID Part Certificate
Pressure transmitter with metal sensors; Overload-resistant and
function-monitored; Communication via HART; Subcomponent
suitablefEN 16/12/2011Language:
English
Version:
16/12/2011
File size:
1.5 MB
File name:
TI00451PEN_0111.pdf
-
-
-
Operating Instruction (BA)
Cerabar S PMC71, PMP71, PMP75 HART V02.30.zz Operating Instructions
Pressure transmitter with ceramic and metal sensors
EN 01/08/202401/03/201810/12/201401/11/201407/05/2014Language:
English
Version:
01/08/2024
File size:
914.5 KB
File name:
BA00271PEN_2022.pdf
-
-
-
Operating Instruction (BA)
Cerabar S PMC71, PMP71, PMP75 FOUNDATION Fieldbus (V 04.00.zz) Operating Instructions
Pressure transmitter with ceramic and metal sensors
Overload-resistant and function-monitored;
Communication via
FOUNDA
TION FieldbusEN 01/08/202403/04/201710/12/201407/05/201430/04/2013Language:
English
Version:
01/08/2024
File size:
1.9 MB
File name:
BA00302PEN_1922-00.pdf
-
-
-
Operating Instruction (BA)
Cerabar S PMP71 Low Power 1-5V DC Output Operating Instructions
Low power pressure transmitter with metal sensors and 1-5V DC voltage
outputEN 25/08/201701/08/2017Language:
English
Version:
25/08/2017
File size:
1.1 MB
File name:
BA01633PEN_0317.pdf
-
-
-
Operating Instruction (BA)
Description of Device Functions HART (V02.10.54) Cerabar S PM71 with MID Part Certificate
Pressure transmitter with metal sensors; Overload-resistant and
function-monitored; Communication via HART; Subcomponent
suitablefor custody transfer measurement with NMi approvalEN 03/04/201710/12/201424/04/201219/12/2011Language:
English
Version:
03/04/2017
File size:
1.3 MB
File name:
BA00413PEN_1316.pdf
-
-
-
Operating Instruction (BA)
Cerabar S /Deltabar S /Deltapilot S Description of device functions PROFIBUS PA V04.01.zz
Cerabar S PMC71, PMP71, PMP75 Pressure transmitter
Deltabar S FMD77, FMD78, PMD75 Differential pressure
transmitter
Deltapilot S FMB70 Hydrostatic pressure transmitterEN 03/04/201710/12/201407/08/201301/10/201101/05/2010Language:
English
Version:
03/04/2017
File size:
4.8 MB
File name:
BA00296PEN_1616.pdf
-
-
-
Operating Instruction (BA)
Cerabar S PMC71, PMP71, PMP75 PROFIBUS PA (V 04.01.zz) Operating Instructions
Pressure transmitter with ceramic and metal sensors
Overload-resistant and function-monitored;
Communication via
PROFIB
USPAEN 01/08/202403/04/201710/12/201407/05/201407/08/2013Language:
English
Version:
01/08/2024
File size:
1.4 MB
File name:
BA00295PEN_1922-00.pdf
-
-
-
Operating Instruction (BA)
Cerabar S / Deltabar S / Deltapilot S, Description of device functions FOUNDATION Fieldbus V 04.00.zz
Cerabar S PMC71, PMP71, PMP75 Pressure transmitter
Deltabar S FMD77, FMD78, PMD75 Differential pressure
transmitter
Deltapilot S FMB70 Hydrostatic pressure transmitterEN 03/04/201710/12/201407/05/201430/04/201301/10/2011Language:
English
Version:
03/04/2017
File size:
6.3 MB
File name:
BA00303PEN_1716.pdf
-
Search spare parts by number in drawing
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Mounting set housing T14/T15 sensor
-
Housing/housing accessories
Drawing numberOrder code1252020440 -
-
Mounting set housing T17 / sensor
-
Housing/housing accessories
Drawing numberOrder code1271020596 -
-
Push button housing, PA/FF
-
Housing/housing accessories
Drawing numberOrder code1352022418 -
-
Push button housing, HART, version 1
-
Housing/housing accessories
Drawing numberOrder code1352022419 -
-
Push button housing, HART, version 2
-
Housing/housing accessories
Drawing numberOrder code1352024110 -
-
Cable gland M20, gasket
-
Adapter housing/cable entry
Drawing numberOrder code1552020760 -
-
Cable entry G1/2, gasket, adapter
-
Adapter housing/cable entry
Drawing numberOrder code1552020761 -
-
Plug 2/7-pole, HAN7D, gasket
-
Adapter housing/cable entry
Drawing numberOrder code1552020762 -
-
Plug 3-pole, M12, gasket
-
Adapter housing/cable entry
Drawing numberOrder code1552020763 -
-
Housing filter VA,EPDM,F15/31/T14/17,1pc
-
further parts
Order code71111056 -
-
Housing filter VA, VMQ, F15, T17, 1 pc.
-
further parts
Order code71219639 -
-
Cover T14/T15 Alu, gasket
-
Cover
Drawing numberOrder code2052020432 -
-
Cover T14/T15 Alu, Ex d, gasket
-
Cover
Drawing numberOrder code2052020433 -
-
Cover T14 316L, Ex d, EPDM
-
Cover
Drawing numberOrder code2052028310 -
-
Cover T17 316L, gasket
-
Cover
Drawing numberOrder code2071002774 -
-
Cover T17 316L, sight glass, gasket
-
Cover
Drawing numberOrder code2071002810 -
-
Cover T17 316L, sight glass PC, gasket
-
Cover
Drawing numberOrder code2071002811 -
-
Cover T14 316L, Ex d, FVMQ
-
Cover
Drawing numberOrder code2071206965 -
-
Cover T14 316L, Ex d, sight glass, FVMQ
-
Cover
Drawing numberOrder code2071206968 -
-
Sealing set FVQM, T14.5 pcs.
-
Sealing
Drawing numberOrder code2171206971 -
-
Cover T14/T15 Alu, sight glass, gasket
-
Cover
Drawing numberOrder code2071245247 -
-
Cover T14/T15 Alu,Exd,sight glass,gasket
-
Cover
Drawing numberOrder code2071245249 -
-
Cover T14 316L, Ex d, sight glass, EPDM
-
Cover
Drawing numberOrder code2071245250 -
-
Sealing EPDM, F30/31/34, T14/15, 5 pcs.
-
Sealing
Drawing numberOrder code2152020429 -
-
Ground terminal T14/T15/T17, F30/F31
-
further parts
Order code71290825 -
-
Cover T14/T15 Alu, gasket
-
Cover
Drawing numberOrder code2552020432 -
-
Cover T14/T15 Alu, Ex d, gasket
-
Cover
Drawing numberOrder code2552020433 -
-
Cover T14 316L, Ex d, EPDM
-
Cover
Drawing numberOrder code2552028310 -
-
Cover T17 316L, gasket
-
Cover
Drawing numberOrder code2571002774 -
-
Cover T14 316L, Ex d, FVMQ
-
Cover
Drawing numberOrder code2571206965 -
-
Electronics HART Ex, ext. p. b., v2.0
-
Electronic
Drawing numberOrder code3052024111 -
-
Electronics HART Ex, v2.0
-
Electronic
Drawing numberOrder code3052024400 -
-
Electronics HART Ex, v2.10
-
Electronic
Drawing numberOrder code3071026358 -
-
Electronics HART Ex, ext. p. b., v2.10
-
Electronic
Drawing numberOrder code3071026359 -
-
Electronic HART Ex, v2.11
-
Electronic
Drawing numberOrder code3071196092 -
-
Electronics HART Ex, ext. p. b., v2.11
-
Electronic
Drawing numberOrder code3071196093 -
-
Electronics HART Ex, v2.20
-
Electronic
Drawing numberOrder code3071263933 -
-
Electronics HART Ex, ext. p. b., v2.20
-
Electronic
Drawing numberOrder code3071263934 -
-
Elektronics HART Ex, v2.30
-
Electronic
Drawing numberOrder code3071386147 -
-
Electronics HART Ex, ext. p. b., v2.30
-
Electronic
Drawing numberOrder code3071386153 -
-
Upgrade electronics HART Ex, v2.1
-
Electronic
Drawing numberOrder code3052026762 -
-
Upgrade electr. HART Ex,ext.push b.,v2.1
-
Electronic
Drawing numberOrder code3052026763 -
-
Electronics PA, HW02.00, SW4.0
-
Electronic
Drawing numberOrder code3071071824 -
-
Electronics PA, ext. p.b., HW02.00,SW4.0
-
Electronic
Drawing numberOrder code3071071825 -
-
Electronics FF, HW2.00, SW3.00
-
Electronic
Drawing numberOrder code3071071826 -
-
Electronics FF, ext. p.b., HW2.00,SW3.00
-
Electronic
Drawing numberOrder code3071071827 -
-
Electronics PA, Ex, HW2.00, SW3.00
-
Electronic
Drawing numberOrder code3071214057 -
-
Electronics PA, ext. p.b.,HW2.00, SW3.00
-
Electronic
Drawing numberOrder code3071214064 -
-
Electronics FF, ext. p.b.,HW2.00, SW2.00
-
Electronic
Drawing numberOrder code3071214066 -
-
Electronics FF, HW2.00, SW2.00
-
Electronic
Drawing numberOrder code3071214069 -
-
Electronics FF, ext. p.b.,HW2.00, SW4.00
-
Electronic
Drawing numberOrder code3071214890 -
-
Electronics FF, HW2.00, SW4.00
-
Electronic
Drawing numberOrder code3071214892 -
-
Electronics PA, HW02.00, SW4.01
-
Electronic
Drawing numberOrder code3071224775 -
-
Electronics PA, ext.p. b.,HW02.00,SW4.01
-
Electronic
Drawing numberOrder code3071224776 -
-
Electronics 1-5VDC Low Power
-
Electronic
Drawing numberOrder code3071327714 -
-
HistoROM / M-DAT, 16K
-
Memory
Drawing numberOrder code3152027785 -
-
Terminal 2-pole, RFI, FF, Ex
-
Terminal module
Drawing numberOrder code3552027691 -
-
Terminal 2-pole, RFI, PA, OVP, Ex
-
Terminal module
Drawing numberOrder code3571028475 -
-
Terminal 2-pole, RFI, FF, OVP, Ex
-
Terminal module
Drawing numberOrder code3571028476 -
-
Terminal 2-pole, RFI, PA, Ex
-
Terminal module
Drawing numberOrder code3571121574 -
-
Terminal 3-pole,Li=0, RFI,HART,Ex ia/Exd
-
Terminal module
Drawing numberOrder code3571191892 -
-
Termin.3-p.,Li=0,RFI,HART,OVP,Ex ia/Exd
-
Terminal module
Drawing numberOrder code3571191894 -
-
Terminal 3-pole, 1-5VDC electronics
-
Terminal module
Drawing numberOrder code3571327712 -
-
Display module VU340, Cbar/Dbar/Dpilot S
-
Display
Drawing numberOrder code4071002865 -
-
Flat gasket 18,5x23,9x1,5 FKM, 5 pieces
-
further parts
Order code52009800 -
-
Adapterk. FMR2xx,FMx4x,PMx7x,FMD7x,FMG60
-
further parts
Order code71000221 -
-
Cable PE, L=2m/80inch, separate housing
-
further parts
Order code71043886 -
-
Cable PE, L=5m/200inch, separate housing
-
further parts
Order code71043888 -
-
Cable PE, L=10m/400inch,separate housing
-
further parts
Order code71043889 -
-
Cable FEP, L=5m/200inch,separate housing
-
further parts
Order code71070738 -
-
Spare RFID TAG
-
further parts
Order codeXPRFID- -
-
Flushing ring NPS 1" Cl. 150-2500, 316L
Order code71377369 -
Flushing ring NPS 2" Cl. 150-2500, 316L
Order code71377370 -
Flushing ring NPS 3" Cl. 150-2500, 316L
Order code71377371 -
Flushing ring DN25, PN16-400, 316L
Order code71377379 -
Flushing ring DN50, PN16-400, 316L
Order code71377380 -
Flushing ring DN80, PN16-400, 316L
Order code71377383 -
Weld-in adapter G1-1/2, 316L
Order code52024469 -
Weld-in adapter G1-1/2, 316L, 3.1
Order code52024470 -
Weld-in adapter G1/2, 316L, A DIN 3852
Order code71389241 -
Weld-in adapter G1/2,316L, 3.1,A DIN3852
Order code71389243 -
Mountingset, housing T14, special
Order code71304770 -
Mounting bracket 2 valve,stainless steel
Order code71372498 -
ToF Adapter FXA291
Order code71007843 -
Mountingset Cerabar,Deltapilot,Levelflex
Order code71102216
5 products & bundles
5 products
Often bought together
Accessories
- Flushing ring NPS 1" Cl. 150-2500, 316L
- Flushing ring NPS 2" Cl. 150-2500, 316L
Related products
