Specs at a glance
-
Spectral coverage
150-3425 cm-1 (532 nm)
Field of application

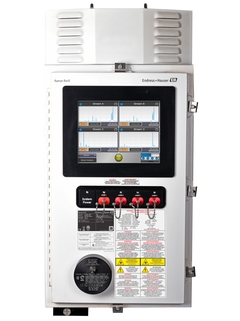

The Raman Rxn5 process analyzer is an industry-leading, turn-key, laser-based analyzer powered by Kaiser Raman technology. It provides quantitative chemical composition measurements using Raman spectroscopy. The design of the Raman Rxn5 incorporates customer requirements for serviceability and hazard-area certification, provides a compact footprint, and minimizes utilities consumption. The high optical efficiency of the analyzer makes it ideal for typical gas-phase sample measurements.
Process measurement points:
Steam methane reformers
Gasifiers (coal, petcoke, waste, biomass)
Shift converters
Hydrotreaters
Hydrocrackers
CO2 removal
Finished product synthesis loops
Typical industries:
Hydrogen production/purity, HyCO, Hydrogen recycle,
Methanol production
Ammonia production
Gas turbine fuel feed
Synthetic natural gal/IGCC power plants
LNG baseload customer transfer, LNG rundown to storage tanks, LNG mixed refrigerant optimization
Benefits
Non-destructive analysis of gases, including homonuclear diatomics (H2, N2, O2)
Compact, smaller than most wall-mount gas chromatographs (GCs)
Can replace up to four traditional analyzers with a single base unit and four probes
Rugged with minimal utility requirements, no sample transport, and no consumables (columns, valves, gases, pumps)
Minimal analyzer technician time with maximum technician safety (no toxic gases are transported to the analyzer)
Measures four streams simultaneously for faster multi-channel results
-20 to +50 °C operating environment
Extended selection
-
High-end products
- Highly functional and convenient
Technical excellence
Simplicity
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections | Technical excellence | Simplicity |
---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
-
-
Technical Information (TI)
Raman Rxn5 Technical Information
System design and specifications for the Raman Rxn5 analyzer -
powered by Kaiser Raman technologyEN 21/11/2023Language:
English
Version:
21/11/2023
File size:
1.2 MB
File name:
TI01646CEN_0222.pdf
-
-
-
Operating Instruction (BA)
Raman RunTime v6.5 Operating Instructions
Commissioning, operation, and maintenance details
for Raman RunTime v6.5 softwareEN 16/11/202316/11/202231/12/2020Language:
English
Version:
16/11/2023
File size:
6.7 MB
File name:
BA02180CEN_0423.pdf
-
-
-
Operating Instruction (BA)
Raman Rxn5 Operating Instructions
Commissioning, operation, and maintenance details for the
Raman Rxn5 analyzer - powered by Kaiser Raman technologyEN 21/11/2023Language:
English
Version:
21/11/2023
File size:
2.8 MB
File name:
BA02179CEN_0323.pdf
-
-
-
Short Instruction (KA)
Raman Rxn5 Brief Operating Instructions
Quick start guide for the Raman Rxn5 analyzer -
powered by Kaiser Raman technologyLanguage:
English
Version:
21/11/2023
File size:
1.1 MB
File name:
KA01554CEN_0222.pdf
-
-
-
Installation Instructions (EA)
LNG analyzer performance verification kit Installation Instructions
Instructions for use of the LNG analyzer performance verification kit
Language:
English
Version:
30/03/2023
File size:
442.7 KB
File name:
EA01470CEN_0123.pdf
-
-
-
Ex Safety Instruction (XA)
Raman Rxn5 Safety Instructions
Hazardous area certifications and installation instructions
for the Raman Rxn5 analyzer - powered by Kaiser Raman technologyEN 07/12/2023Language:
English
Version:
07/12/2023
File size:
1.6 MB
File name:
XA02746CEN_0222.pdf
-
-
-
PU (Publication)

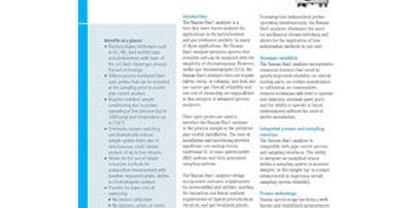

Raman Rxn5 analyzer - Laser-based composition analysis
An overview brochure about our Raman Rxn5 analyzer (including
the Raman Rxn-30 probe, the Rxn-40 probe, and the Rxn-41 probe),
a Raman spectroscopy analyzer system for gas phase measurements
powered by Kaiser Raman technology.Language:
English
Version:
28/10/2021
File size:
499.9 KB
File name:
PU01444CEN_0121.pdf
-
-
-
PU (Publication)
Raman analyzer application guide for the oil & gas and chemical industries - Composition analysis of gas streams and LNG
A guide to our Raman spectroscopy analyzer and probe portfolio,
powered by Kaiser Raman technology, for composition analysis of
gas streams and LNG (includes the Raman Rxn4 analyzer, the
Raman Rxn5 analyzer, the Raman Rxn-30 probe, and
Raman Rxn-41 probe) in the chemical industry and oil & gas industry.Language:
English
Version:
08/12/2021
File size:
2.5 MB
File name:
PU01445CEN_0121.pdf
-
-
-
PU (Publication)
石油・ガスおよび化学産業向け ラマン分光計アプリケーションガイド - ガスストリームおよびLNGの組成分析
化学産業および石油・ガス産業におけるガスストリームおよび LNG
の組成分析用(Raman Rxn4 アナライザー、Raman Rxn5 アナライザ
ー、Raman Rxn-30 プローブ、Raman Rxn-41 プローブを含む)、
Kaiser Raman テクノロジーによるラマン分光アナライザーおよび
プローブ製品ラインアップのご案内です。Language:
Japanese
Version:
13/05/2024
File size:
4.2 MB
File name:
PU01445CJA_0121_RamanAnalyzer_AppGuide_OilGas_ChemInd.pdf
-
-
-
PU (Publication)
Industry standards on gas quality - Raman Rxn5 analyzer (syngas/LNG) andRaman Rxn4 analyzer (LNG)
A list of industry gas quality standards that our Raman Rxn5
analyzer meets for syngas / LNG and our Raman Rxn4
analyzer meets for LNG.Language:
English
Version:
20/04/2022
File size:
432.5 KB
File name:
PU01463CEN_0122.pdf
-
