Specs at a glance
-
Process temperature
max. 80°C
-
Process pressure
max. 6bar (20°C)
Field of application

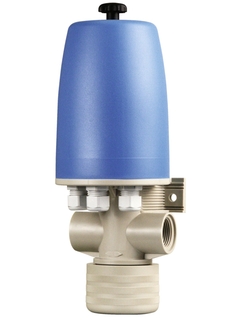

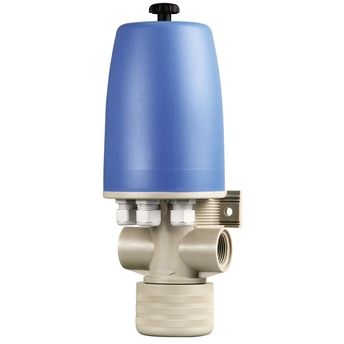

The Flowfit CPA250 flow assembly is designed for pipe installation in water and wastewater treatment. It offers space for three sensors and is able to extend their service life by keeping them wet even when the flow is interrupted. The assembly itself is also durable thanks to corrosion-resistant polypropylene. With Flowfit you get the right product exactly for your standard applications.
Flowfit CPA250 is intended to be used in pipes in:
Wastewater treatment
Drinking water
Utilities
It is suitable for use with pressures of up to 6 bar.
Benefits
Cost-efficient flow assembly for in-line installation
Simple installation and removal of the sensors thanks to threaded cap
Easy calibration without dismounting the sensors using the removable bottom part as calibration vessel
Reduces installation effort by providing 3 mounting positions for 120 mm sensors or an optional cleaning unit
Predecessor
Success stories
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
20 documents
-
-
Technical Information (TI)
Technical Information CPA250
Flow assembly for pH/ORP sensors
EN 01/05/200901/03/200701/11/1999Language:
English
Version:
01/05/2009
File size:
496.3 KB
File name:
TI041CEN_0409.pdf
-
-
-
Operating Instruction (BA)
Operating Instructions Flowfit W CPA250
Flow assembly for pH / ORP sensors
EN 30/04/200901/03/200701/11/200301/11/1999Language:
English
Version:
30/04/2009
File size:
499.6 KB
File name:
BA041CEN_0409.pdf
-
-
-
Installation Instructions (EA)
Kit CxA O-ring
For assemblies with a dummy plug (e.g.: CxA111, CPA240, CPA250, CYA27,
12mm electrodes with PG13.5 thread)EN 21/05/2021Language:
English
Version:
21/05/2021
File size:
590.4 KB
File name:
EA01355CEN_0121.pdf
-
-
-
Fields of Activities (FA)
Kompetenz in der Flüssigkeitsanalyse
Vom Sensor bis zur schlüsselfertigen Komplettlösung
Language:
German
Version:
21/09/2022
File size:
1.3 MB
File name:
FA01018CDE_0422_Analyse_Portfolio_lowres.pdf
-
-
-
Fields of Activities (FA)
Sensors, transmitters, compact devices and assemblies
Experts in Liquid Analysis
Language:
English
Version:
24/09/2024
File size:
4.2 MB
File name:
FA00007CEN_Analyse_21.24_LowRes.pdf
-
-
-
Fields of Activities (FA)
Sıvı analizinde uzmanlık
Sensörlerden komple anahtar teslim çözümlere
Language:
Turkish
Version:
23/11/2023
File size:
7.2 MB
File name:
FA01088C56TR01.23.pdf
-
-
-
Fields of Activities (FA)
Sensoren, Messumformer, Kompaktgeräte and Armaturen
Kompetenz in der Flüssigkeitsanalyse
Language:
German
Version:
24/09/2024
File size:
4.1 MB
File name:
FA00007CDE_Analyse_21.24_LowRes.pdf
-
-
-
Fields of Activities (FA)
Expertise in liquid analysis
From sensors to complete turnkey solutions
Language:
English
Version:
21/09/2022
File size:
1.2 MB
File name:
FA01018CEN_0422_Analysis_Portfolio_lowres.pdf
-
-
-
Fields of Activities (FA)
Jistota v analýze kapalin
Od senzorů po kompletní dodávku na klíč
Language:
Czech
Version:
12/01/2017
File size:
740.3 KB
File name:
Analyza_FA01018Ccs_0216.pdf
-
-
-
Fields of Activities (FA)
Esperti nell’analisi dei liquidi
Dai sensori singoli a soluzioni
complete “chiavi in mano”Language:
Italian
Version:
12/01/2017
File size:
3.9 MB
File name:
FA01018CIT_02.16.pdf
-
Search spare parts by number in drawing
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Kit CPA250: Calibration vessel PP
-
Housing/housing accessories
Drawing numberOrder code30071290133 -
-
Kit CPA250: Protection cover w. star nut
-
Cover
Drawing numberOrder code31071290135 -
-
Kit CPA250: Set of cable glands
-
Adapter housing/cable entry
Drawing numberOrder code32071290137 -
-
Kit CPA250: O-ring set
-
Sealing
Drawing numberOrder code38071290139 -
-
Kit CPA250: Potential matching pin 316Ti
-
Connection (electrical)
Drawing numberOrder code33071290140 -
-
Kit CPA250: Potential matching pin titan
-
Connection (electrical)
Drawing numberOrder code34071290141 -
-
Kit CPA250: Potential matching pin PP
-
Sealing
Drawing numberOrder code35071290142 -
-
Kit CPA250: blind plug set 3x PG13,5
-
Assembly/armature accessory
Drawing numberOrder code36071290146 -
-
Kit CPA250: Tie rod with star nut
-
Assembly/armature accessory
Drawing numberOrder code37071290147 -
-
Kit CxA O-ring 10.69x3.53 FKM (10x)
-
Sealing
Drawing numberOrder code38071516970 -
-
NP with 2 nipples for CPA 250
Order code50003450 -
NV 32mm with 2 nipples for CPA250
Order code50003454 -
NV 25mm with 2 nipples for CPA 250
Order code50003456
