Specs at a glance
-
Measuring range
Standard sensor: 0 to 60 mg/l, 0 to 600 %SAT, 0 to 1200 hPa, 0 to 100 Vol%
Trace sensor: 0 to 10 mg/l, 0 to 120 %SAT, 0 to 250 hPa, 0 to 25 Vol% -
Process temperature
-5 to 135 °C (23 to 275 °F)
-
Process pressure
1 to 12 bar abs (14.5 to 174 psi)
Field of application

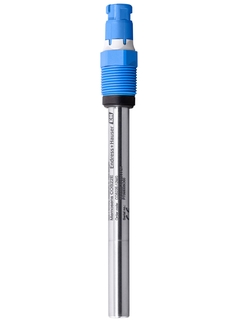

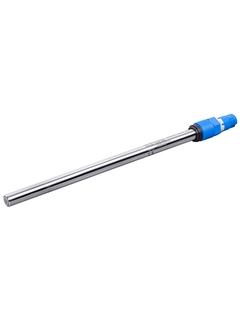

Memosens COS22E is fully compliant to FDA and USP and thus suitable for hygienic and sterile applications. The sensor is low-maintenance and ensures long-term stability - even with frequent sterilization. Its trace version safeguards your products, process and plant equipment from oxygen influences. Thanks to Memosens 2.0 digital technology, COS22E offers extended storage of calibration and process data providing the perfect basis for predictive maintenance and efficient operation.
Oxymax COS22E measures oxygen in the core processes of many industries:
Life sciences and biotechnology: Process control in fermentation
Food & Beverages
Water treatment: Boiler feedwater
Inertizations
Residual oxygen measurement in processes
With its international explosion-protection approvals, the digital sensor is suitable for hazardous area use.
Benefits
Low maintenance: The modular sensor design enables fast exchange of membrane cap and electrolyte.
-
Full compliance with all relevant regulations for hygienic processes ensures the safety of your product.
High accuracy of the measuring principle enables precise measurement resulting in best product quality.
The sensor is suitable for application in hazardous areas.
IIoT ready: Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.
Increased plant availability: Memosens technology and Liquiline transmitters enable plug & play for fast commissioning and sensor exchange.
