Specs at a glance
-
Process temperature
-40°C ... 150°C
(-40°F ... 300°F) -
Process pressure / max. overpressure limit
Vacuum ... 25 bar
(Vacuum ... 360 psi) -
Min. density of medium
200 g/l
Field of application

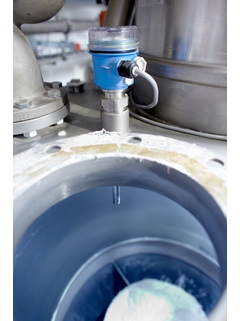

Soliphant FTM20 is a point level switch for applications with fine-grained or coarse-grained, non-fluidized bulk solids. The various designs means the device has a wide range of applications. Certificates are also available for use in dust and hazardous areas.
Point level switch for fine grained solids
Process connections: Threads
Temperature: -40 to +150°C (-40 to +300°F)
Pressure: -1 to +25bar (-14.5 to +360psi)
Sensor material: 316L
International explosion protection certificates
Benefits
No calibration required, easy commissioning (plug and play)
Measurement not affected by build-up or external vibration
No mechanically moved parts, free of maintenance
Sensor material 316L, abrasion resistant even with building materials

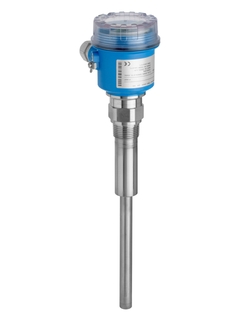

Plastic housing with cover with sight glass, switch status visible from outside;

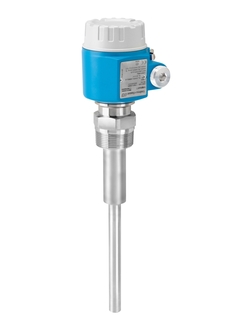

also aluminium housing availableNot affected by flow noises
Available with explosion protection certificates
Videos
Fundamental selection
-
Simple products
- Easy to select, install and operate
Technical excellence
Simplicity
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
Loading alternative products
Predecessor
Success stories
44 documents
-
-
Technical Information (TI)
Soliphant T FTM20, FTM21 Technical Information
Robust point level switch for bulk solids,
also for dust incendive hazard areasEN 31/08/201808/01/201813/07/201708/12/201609/04/2008Language:
English
Version:
31/08/2018
File size:
2.1 MB
File name:
TI00389FEN_1618.pdf
-
-
-
Short Instruction (KA)
Exchange of electronic insert on Soliphant T FTM20, FTM21
Exchange of electronic insert on Soliphant T FTM20, FTM21
EN 19/05/2021Language:
English
Version:
19/05/2021
File size:
177.3 KB
File name:
KA00621FA2_0909.pdf
-
-
-
Short Instruction (KA)
Operating Instructions Soliphant T FTM20, FTM21
Robust point level switch for bulk solids,
also for dust incendive hazard areasEN 08/01/201813/07/201708/12/201630/09/2004Language:
English
Version:
08/01/2018
File size:
1.2 MB
File name:
KA00227FA6_1518.pdf
-
-
-
Ex Safety Instruction (XA)
Soliphant T FTM20, FTM21
ATEX, IECEx:
Ex ta/tb IIIC Da/DbEN 02/08/202113/04/201614/03/201301/11/201101/08/2004Language:
English
Version:
02/08/2021
File size:
405.9 KB
File name:
XA00300FEN_1621.pdf
-
-
-
Ex Safety Instruction (XA)
XA Soliphant T FTM20, FTM21
Ex ta/tb IIIC T135 °C Da/Db
EN 06/02/202411/12/202005/10/2017Language:
English
Version:
06/02/2024
File size:
401 KB
File name:
XA01681FEN_0323-00.pdf
-
-
-
Ex Safety Instruction (XA)
Soliphant T FTM20, FTM21
Ex ta IIIC T170°C Da X and Ex tc IIIC T170°C Dc X
EN 25/05/202030/07/2018Language:
English
Version:
25/05/2020
File size:
115.4 KB
File name:
XA01420FEN_0220.pdf
-
-
-
Ex Safety Instruction (XA)
Soliphant T FTM20, FTM21
II 1/2 D Ex ta/tb IIIC Da/Db
Language:
English
Version:
16/09/2021
File size:
396 KB
File name:
XA02703FEN_0121-00.pdf
-
-
-
Ex Safety Instruction (XA)
Safety Instructions Soliphant T FTM20, FTM21
Ex ta/tc IIIC T170°C Da/Db
IECEx KEM07.0043EN 14/03/201301/10/200701/04/2007Language:
English
Version:
14/03/2013
File size:
134.2 KB
File name:
XA00424FA3_1313.pdf
-
-
-
Ex Safety Instruction (XA)
Soliphant T FTM20, FTM21
Ex ta/tb IIIC T135°C Da/Db
EN 04/08/202222/01/201816/04/201301/02/2008Language:
English
Version:
04/08/2022
File size:
505.7 KB
File name:
XA00434FEN_1522-00.pdf
-
-
-
Fields of Activities (FA)
Level measurement
Product overview for applications in liquids and bulk solids
Language:
English
Version:
14/10/2022
File size:
10.5 MB
File name:
FA00001F00EN2522.pdf
-
Search spare parts by number in drawing
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Cover F18 Alu, gasket
-
Cover
Drawing numberOrder code2052005910 -
-
Cover F16 transparent, gasket
-
Cover
Drawing numberOrder code2052025790 -
-
Cover F13/17/18 Alu,sight glass,gasket
-
Cover
Drawing numberOrder code2052027693 -
-
O-ring 71.0x3.55 EPDM, 5 pieces
-
Sealing
Drawing numberOrder code2152004137 -
-
Sealing set EPDM,cover F13/17/18/27,10pc
-
Sealing
Drawing numberOrder code2152004277 -
-
Electronics FEM22, PNP 10-45VDC
-
Electronic
Drawing numberOrder code3052025688 -
-
Electronics FEM24 DPDT 19-253VAC/55VDC
-
Electronic
Drawing numberOrder code3052025691 -
-
Diagnostics plug FTL5x,FTL7x,FTL8x,FTM5x
-
further parts
Order code71036514 -
-
O-ring 28.17x3.53 VMQ, FDA, 5 pcs.
-
further parts
Order code52014472 -
-
Weather protection cover F13/F17/F18/F27
Order code71040497 -
Protection cover F16 housing
Order code71127760 -
Sliding sleeve R1-1/2 SS, FTM21
Order code52023313 -
Sliding sleeve R1-1/2 SS, FTM21, press.
Order code52023312 -
Sliding sleeve NPT1-1/2 SS, FTM21
Order code52024578 -
Sliding sleeve NPT1-1/2 SS, FTM21,press.
Order code52025090
