Liquiphant FTL50H - Vibronic

Vibronic
Point level detection
Liquiphant FTL50H

Compact vibration point level switch for liquids especially in the food and life sciences industry

FTL50H
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

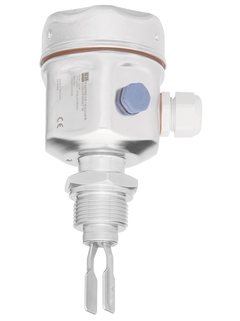

Liquiphant FTL50H
  • F
  • L
  • E
  • X
©Endress+Hauser
Liquiphant FTL50H
  • F
  • L
  • E
  • X
©Endress+Hauser

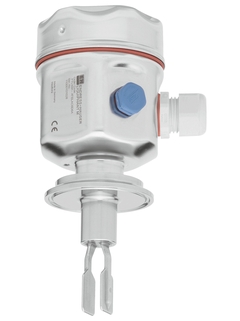

Liquiphant FTL50H
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Process temperature

    -50 °C...+150 °C
    (-58 °F...+302 °F)

  • Process pressure / max. overpressure limit

    Vacuum...64 bar
    (Vacuum...928 psi)

  • Min. density of medium

    0.5g/cm³
    (0.4g/cm³ optional)

Field of application

Liquiphant FTL50H is a point level switch for use in hazardous areas with all international certificates. Especially useable in the food and life sciences industry with hygienic certificates (3-A, EHEDG, ASME BPE). FTL50H offers functional safety SIL2/SIL3. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.

Point level switch for all liquids with completely welded housing concept.

  • Process connections: Threads, flanges and hygienic process connection (Tri-Clamp, dairy coupling, aseptic, DRD, SMS, Varivent)

  • Temperature: -50 to +150°C (-58 to +302°F)

  • Pressure: -1 to +64bar (-14.5 to +928psi)

  • Sensor material: 316L

  • International explosion protection certificates, overfill protection WHG, SIL, hygienic certificates, marine approvals

Benefits

  • International hygienic certificates (3-A, EHEDG, ASME BPE). FDA-conformed material

  • Electro-polished and passivated surface finishing

  • International explosion protection certificates and overfill protection certificate (WHG)

  • No mechanically moving parts: no maintenance, no wear, long operating life.
    Monitoring of fork for damage: guaranteed function

  • Use in safety systems requiring functional safety to SIL2/SIL3 in accordance with
    IEC 61508/IEC 61511-1

  • No calibration required, easy to start up

  • Variety of standardized hygienic process connections for hygiene sensitive applications
