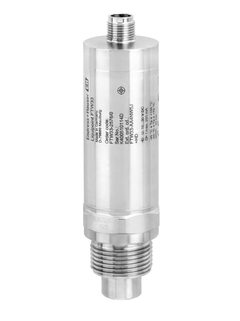

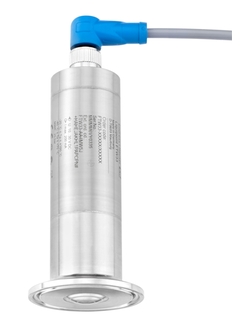

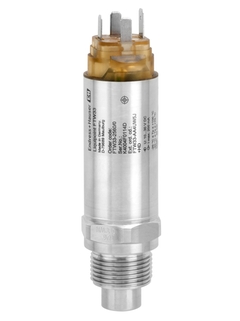

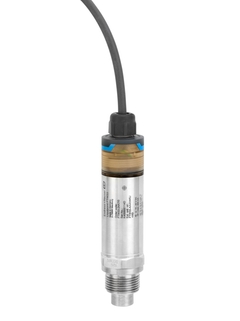

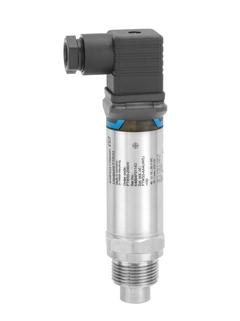

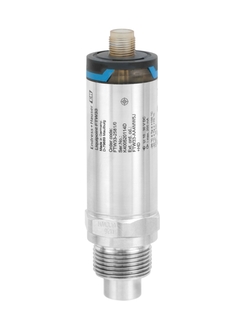

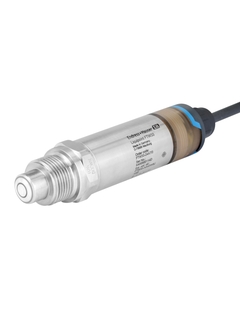

Liquipoint FTW33 - Conductive point level switch

Conductive
Point level detection
Liquipoint FTW33

Very compact flush-mounted probe for liquid and pasty media

FTW33
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Liquipoint FTW33
  • F
  • L
  • E
  • X
©Endress+Hauser
Liquipoint FTW33
  • F
  • L
  • E
  • X
©Endress+Hauser
Liquipoint FTW33
  • F
  • L
  • E
  • X
©Endress+Hauser
Liquipoint FTW33
  • F
  • L
  • E
  • X
©Endress+Hauser
Liquipoint FTW33
  • F
  • L
  • E
  • X
©Endress+Hauser
Liquipoint FTW33
  • F
  • L
  • E
  • X
©Endress+Hauser
Liquipoint FTW33
  • F
  • L
  • E
  • X
©Endress+Hauser
Liquipoint FTW33
  • F
  • L
  • E
  • X
©Endress+Hauser

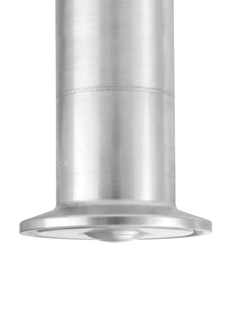

Liquipoint FTW33 with real flush mounted pipe assembly
  • F
  • L
  • E
  • X
©Endress+Hauser
IO-Link digital communication technology

Specs at a glance

  • Process temperature

    Standard:
    -20 ... 100°C
    Cleaning:
    -20 ... 150°C for 1h
    ( -4 ... 302°F for 1h)

  • Process pressure / max. overpressure limit

    Vacuum ... 25 bar
    (Vacuum ... 362,5 psi)

Field of application

The Liquipoint FTW33 is developed for the food industry and meets all international hygiene requirements. The device also fits perfectly for applications in all industries. For use in pasty and sticky media and media with heavy build-up.

For use in pipes and in storage, mixing and process vessels with or without an agitator. For liquids with electrical conductivity >1 μS/cm or dielectric constant >2. Developed for the food industry. Detection of foam occurring within the food industry possible.

  • Process connections: Threads and hygiene connections

  • Sensor length: Flush-mounted

  • Temperature: -20 to +100°C (-4 to +212°F), CIP/SIP to 150°C (302°F) for 1 hour

  • Pressure: 0 to 25bar abs (0 to 362,5psi abs)

  • Hygienic certificates

Benefits

  • Perfect fit to the hygienic industry thanks to flush-mounted design, which allows pigging of pipes

  • Safe and reliable measurement due to build-up compensation, ensuring reliable switching; IO-Link reduces costs and complexity due to easy configuration and flexible integration in all fieldbus systems

  • Individual adjustment to each medium not necessary

  • Easy installation thanks to compact design, even in tight conditions or where access is restricted

  • Broad range of process connections for installation in new and existing plants

  • CIP and SIP cleanability ensured - up to protection class IP 69

  • LED display for on-site function check
