Specs at a glance
-
Process temperature
-80 °C ... +200 °C
(-112 °F ... +392 °F) -
Process pressure / max. overpressure limit
Vacuum ... 100 bar
(Vacuum ... 1450 psi)
Field of application

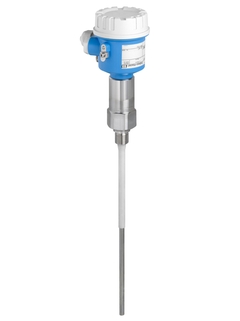

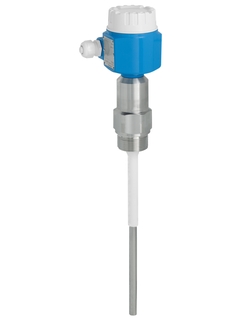

Liquicap FTI51 is a rod probe for point level detection of liquids that are highly viscous and tend to form build-up. Also used for detection of interface and foam of conductive liquids. Due to its active build-up compensation FTI51 offers maximum reliability and is suited for a wide range of applications thanks to international certificates. The parts in contact with the process are made of corrosion-resistant and FDA-listed materials - this guarantees a high safety standard.
For liquids that tend to form build-up. Interface detection of different liquids. Two-point control (pump control) with just one process connection. Foam detection of conductive liquids.

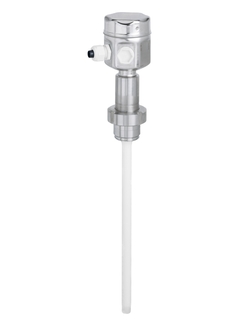

Process connections: Flanges, threads, special hygienic process connections
Temperature: -80 to +200°C (-112 to +392°F)
Pressure: Vacuum to +100bar (vacuum to +1,450psi)
Sensor length: 6m (20ft)
International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates, marine approval
Benefits
Cost savings thanks to easy and fast commissioning as calibration takes place at the press of a button

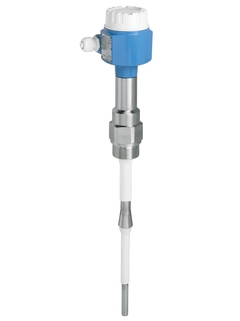

Reliable and safe measurement due to active build-up compensation
Reliable and universal application thanks to wide range of certificates and approvals
Short reaction time
Material in contact with the process made of corrosion-resistant and FDA-listed materials
Two-stage overvoltage protection
No need for recalibration after replacing electronics
Videos
Lean selection
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
Loading alternative products
Predecessor
Success stories
Most downloaded
-
-
Technical Information (TI)
Technical Information Liquicap M FTI51, FTI52
English version - 06/2017
Capacitance Point level switch for liquids
EN 22/06/201712/01/201105/03/201006/11/200821/09/2007Language:
English
Version:
22/06/2017
File size:
1.8 MB
File name:
TI00417FEN_1417.pdf
-
113 documents
-
-
Technical Information (TI)
TI Liquicap M FTI51
Capacitance
EN 05/09/202425/09/2023Language:
English
Version:
05/09/2024
File size:
1.7 MB
File name:
TI01530FEN_0224-00.pdf
-
-
-
Technical Information (TI)
TI Weld-in adapter, process adapter and flanges
Level, pressure and temperature measurement
EN 25/03/202415/09/202328/10/202130/07/202119/06/2020Language:
English
Version:
25/03/2024
File size:
1.1 MB
File name:
TI00426FEN_2524.pdf
-
-
-
Technical Information (TI)
Technical Information Liquicap M FTI51, FTI52
Capacitance
Point level switch for liquidsEN 22/06/201712/01/201105/03/201006/11/200821/09/2007Language:
English
Version:
22/06/2017
File size:
1.8 MB
File name:
TI00417FEN_1417.pdf
-
-
-
Operating Instruction (BA)
Operating Instructions Liquicap M FTI51, FTI52
Capacitance point level switch
EN 22/06/201712/01/201105/03/201005/10/200824/08/2006Language:
English
Version:
22/06/2017
File size:
1.7 MB
File name:
BA00299FEN_1417.pdf
-
-
-
Operating Instruction (BA)
BA Liquicap M FTI51
Capacitance
EN 05/09/202425/09/2023Language:
English
Version:
05/09/2024
File size:
2.7 MB
File name:
BA02031FEN_0224-00.pdf
-
-
-
Short Instruction (KA)
Liquicap M FTI51
Capacitance point level switch
EN 01/09/2021Language:
English
Version:
01/09/2021
File size:
949.6 KB
File name:
KA01471FEN_0120.pdf
-
-
-
Installation Instructions (EA)
Cover for housing T13 terminal compartment Installation instruction
Liquiphant M/S, Soliphant M, Liquicap M, Solicap M/S
EN 24/02/202215/08/201409/08/2012Language:
English
Version:
24/02/2022
File size:
119 KB
File name:
EA01050FA2_0322.pdf
-
-
-
Installation Instructions (EA)
Cover for housing T13 electronic compartment Installation instruction
Liquiphant M/S, Soliphant M, Liquicap M, Solicap M/S
EN 11/08/201409/08/2012Language:
English
Version:
11/08/2014
File size:
164.3 KB
File name:
EA01048FA2_0214.pdf
-
-
-
Installation Instructions (EA)
Cover for housing F13 Installation instruction
Liquiphant M/S, SoliphantM, Liquicap M, Solicap M/S
EN 11/08/201409/08/2012Language:
English
Version:
11/08/2014
File size:
134.4 KB
File name:
EA01046FA2_0214.pdf
-
-
-
Installation Instructions (EA)
Cover for housing T13 electronic compartment with sight glas Installation instruction
Liquicap M, Solicap M, Liquphant M/S/FailSafe, Soliphant M
EN 09/08/2012Language:
English
Version:
09/08/2012
File size:
158.7 KB
File name:
EA01049FA2_01.12.pdf
-
Search spare parts by number in drawing
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Cover F13 Ex Alu, gasket
-
Cover
Drawing numberOrder code2052002698 -
-
Cover F17 Alu, gasket
-
Cover
Drawing numberOrder code2052002699 -
-
Cover T13 Alu, gasket EPDM
-
Cover
Drawing numberOrder code2052006903 -
-
Cover F16 grey, PBTP, gasket
-
Cover
Drawing numberOrder code2052025606 -
-
Cover F15 316L, gasket
-
Cover
Drawing numberOrder code2052027000 -
-
Cover T13 "Terminal" Alu, gasket EPDM
-
Cover
Drawing numberOrder code2552007103 -
-
O-ring 71.0x3.55 EPDM, 5 pieces
-
Sealing
Drawing numberOrder code2152004137 -
-
Sealing set EPDM,cover F13/17/18/27,5pc
-
Sealing
Drawing numberOrder code2152004277 -
-
Sealing set EPDM 73.0x3.0, 10 pieces
-
Sealing
Drawing numberOrder code2152008495 -
-
Gasket 67.5x2.9x1.5 VMQ/PTFE, 5 pieces
-
Sealing
Drawing numberOrder code2152028179 -
-
Cable F15/F16/F17 separate, FTIxx
-
further parts
Order code71084478 -
-
Electronics FEI54, relay DPDT, AC/DC
-
Electronic
Drawing numberOrder code3071025814 -
-
Electronics FEI55, 8/16mA, 11-36VDC
-
Electronic
Drawing numberOrder code3071025815 -
-
Electronics FEI57S, 2-wire PFM
-
Electronic
Drawing numberOrder code3071025816 -
-
Electronics FEI52, PNP, 10-55VDC
-
Electronic
Drawing numberOrder code3071025819 -
-
Electronics FEI53, 3-12V, signal
-
Electronic
Drawing numberOrder code3071025820 -
-
Electronics FEI51, 19-253VAC
-
Electronic
Drawing numberOrder code3071042887 -
-
Electronics FEI58 Namur
-
Electronic
Drawing numberOrder code3071100895 -
-
Terminal module 2-pole EEx d, RFI filter
-
Terminal module
Drawing numberOrder code3571020804 -
-
Sealing ring G1/2, 21x26, FA, 5 pcs.
-
further parts
Drawing numberOrder code5771194296 -
-
Sealing ring G3/4, 27x32, FA, 5 pcs.
-
further parts
Drawing numberOrder code5771185027 -
-
Sealing ring G1, 33x39 FA, 5 pcs.
-
further parts
Drawing numberOrder code5752014048 -
-
Sealing ring G1-1/2, 48x55 FA, 5 pcs.
-
further parts
Drawing numberOrder code5752014047 -
-
O-ring 14.9x2.7 VMQ, FDA, 5 pcs.
-
further parts
Order code52021717 -
-
O-ring 14.9x2.7 VMQ, FDA, USP, 3 pcs.
-
further parts
Order code71086117 -
-
O-ring 28.17x3.53 VMQ, FDA, 5 pcs.
-
further parts
Order code52014472 -
-
O-ring 28.17x3.53 VMQ, FDA, USP, 3 pcs.
-
further parts
Order code71086102 -
-
O-ring 28.17x3.53 EPDM, FDA, USP, 3 pcs.
-
further parts
Order code71140668 -
-
Weather protection cover F13/F17/F18/F27
Order code71040497 -
Protection cover F16 housing
Order code71127760 -
Weld-in adapter UNI D65, 316L
Order code214880-0002 -
Weld-in adapter UNI D65, 316L, 3.1
Order code52010174 -
Weld-in adapter UNI D85, 316L
Order code52006262 -
Weld-in adapter UNI D85, 316L, 3.1
Order code52010173 -
Profile gasket silicone, 5 pieces
Order code52023572 -
Weld-in adapter G3/4 d=50, 316L, 3.1
Order code52018765 -
Weld-in adapter G1, d=60, 316L
Order code52001051 -
Weld-in adapter G1, d=60, 316L, 3.1
Order code52011896 -
Weld-in adapter G1, d=53, 316L, 3.1
Order code71093129 -
Weld-in adapter G1, d=53, 316L
Order code71258358 -
Mounting set (2"/pipe 38_V4A
Order code919806-1000
