Hygienic flowmeter with highest repeatability and fully-welded transmitter for filling and dosing

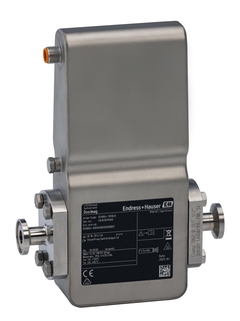

Dosimag electromagnetic flowmeter

Flowmeter with hygienic design, highest repeatability, and compact, fully-welded housing

D5AB
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

Specs at a glance

  • Max. measurement error

    ±0.25 % o.r. ± 1 to 4 m/s (3.3 to 13 ft/s)

  • Measuring range

    0.14 to 1.66 l/s (0.035 to 0.44 gal/s)

  • Medium temperature range

    Seal material EPDM: –20 to +130 °C (–4 to +266 °F)
    Seal material Silicone: –20 to +130 °C (–4 to +266 °F)
    Seal material Viton: 0 to +150 °C (+32 to +302 °F)

  • Max. process pressure

    PN 16

  • Wetted materials

    Liner: PFA
    Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022), Tantalum,
    Platinum

Field of application

Dosimag is designed for demanding filling and bottling applications with conductive liquids in Food & Beverage and Life Sciences. In applications where space is limited, Dosimag is the preferred choice for system integrators, skid builders and equipment manufacturers. Dosimag measures volume directly. The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.

The compact and robust sensor is available with three electronics versions:

  • Pulse/frequency/status version for easy and economical use in filling applications

  • Intelligent pulse version with IO-Link provides continuous digital communication, allowing easy commissioning and documentation, real-time availability of process data, optimization of filling conditions and predictive maintenance

  • Integrated batching version with Dynamic Drip Correction over Modbus RTU for advanced filling control

Benefits

  • High and stable filling performance – high measuring accuracy and repeatability in shortest filling times

  • IO-Link allows real-time digital communication for easier commissioning and continuous data availability

  • Compact design for optimized machine footprint

  • Integrated batching functionality – filling process management solved by the flowmeter

  • Automatic recovery of data for servicing

  • Global compliance with industry standards – EHEDG, 3-A, FCM, cGMP

  • SIP and CIP cleanable
