Name: Levelflex M FMP45
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

"Product Phased Out".
Level, radar, guided.
High pressure / high temperature.
Application: mainly liquids.
Ideal to measure in bypass / chamber.
Factory precalibrated.
Incl. Setup-/diagnostic software.
:: Reliable measuring:
in case of moved surface + foam,
for changing medias.

Predecessor

Rod probe 11500ZM

Rod probe 11500Z

Successor

F

L

E

X

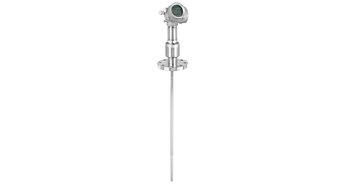

Levelflex FMP54

For high temperature and high pressure applications in the oil & gas, chemical and power industry
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

from CHF ??.-

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Characteristic / Application

Characteristic / Application
Interface measurement

Clean interfaces liquid / liquid
Simultaneous measurment of interface and overall level
Supply / Communication

2-wire (HART / PROFIBUS PA / FOUNDATION Fieldbus )
Accuracy

Accuracy
Ambient temperature

-40 °C ... 80 °C
(-40 °F ... 176 °F)
Process temperature

XT-Version:
-200 °C ... 280 °C
(-328 °F ... 536 °F)
HT-Version:
-200 °C ... 400 °C
(-328 °F ... 752 °F)
Process pressure / max. overpressure limit

Vacuum ... 400 bar
(Vaccum ... 5802 psi)
Main wetted parts

Main wetted parts
Process connection

Flange:
EN 1092-1 B: DN50, DN80, DN100
ASME: 2", 3", 4"
JIS: DN50, DN80, DN100
Sensor length

Rod: 4 m (178")
Coax: 4 m (178")
Rope: 35 m (1378")
Application

Application
Max. measurement distance

Max. measurement distance
Communication

4 ... 20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus
Certificates / Approvals

ATEX
FM
CSA
WHG/ Overfill prevention
SIL
NACE
EN10204-3.1
Successor

FMP54
Application limits

Application limits

Filter

113 documents

Technical Information (TI)

Levelflex M FMP41C, FMP45 Technical Information

Technical Information (TI)

English version - 10/2012

New version available in English

Guided Level-Radar
Continuous Level Transmitter for
'- Level Measurement in Liquids
'- Interface Measurement in Liquids
